FIGHTEX Damper - TODA RACING

S14 SILVIA

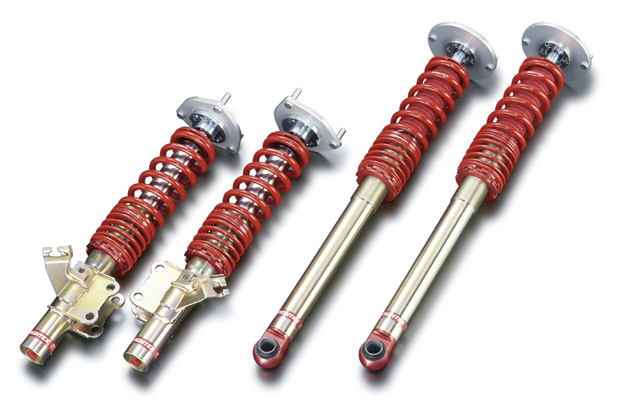

S14 FIGHTEX Damper KIT
Type
Kit contents		Damper + Spring + Pillow ball upper mount
Model		S14 (SILVIA)
Part No.		51500-S14-000
Price (KIT)		¥342,000~ *Please ask
Price (damper only)		51502-S14-000 ¥238,000~ *Please ask
Price (damper + spring)		51501-S14-000 ¥277,000~ *Please ask
Option		Pillow-ball bush (R ¥16,000)
Supplied spring rate [kgf/mm-mm]	Front	8K-200
	Rear	6K-200
Accessories		Helper springs
Design		F: Up side down design / R: Standard design

-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥25,000 ~ /set)

Damper KIT contents: Damper, main spring, helper spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
